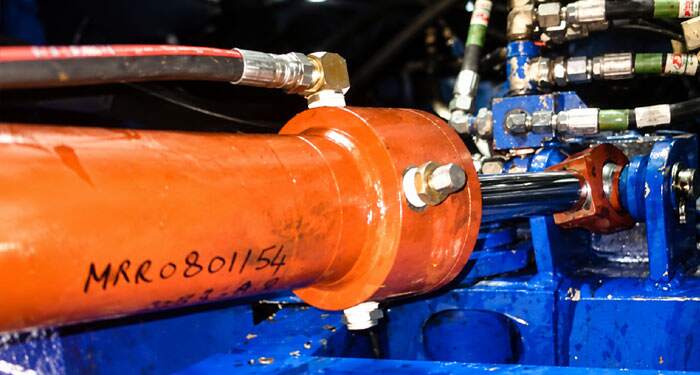

On-Site Hydraulic Cylinder Thread Repair & Modification
A time-critical hydraulic engineering repair involving adaptor modification, drilling and tapping a new thread, reassembly and machine testing.
Hydraulic repairs do not always involve simply replacing a failed hose, valve or cylinder. Sometimes an engineer has to modify an existing component to overcome a mechanical connection problem and return the equipment to service.
For this job, Completely Hydraulic attended machinery with a cylinder thread closure issue. The repair required the existing adaptor to be removed and modified before a new thread could be drilled and tapped.
The adaptor was then refitted with a blank, the assembly returned to the machine and the completed repair tested.
Time was particularly important because the machine was required for an upcoming shift. Two Completely Hydraulic engineers attended so the work could be completed within the required timeframe.
For damaged or under-performing hydraulic cylinders, Completely Hydraulic provides
hydraulic cylinder repair and mobile hydraulic engineering services.
Job Overview
- Issue: Cylinder thread closure failing on the machine
- Work Required: Remove and modify adaptor, drill and tap new thread, refit with blank
- Engineering Work: On-site hydraulic component modification
- Engineers: Two engineers attended to meet the required timeframe
- Preparation: Required materials collected from Completely Hydraulic’s Harlow depot
- Final Stage: Components refitted to the machine and repair tested
- Operational Requirement: Machine required for an upcoming shift
Quick Answer: Can a Hydraulic Cylinder Thread Be Repaired On Site?
In some circumstances, yes. The appropriate repair depends on the type of connection, the extent of the damage and whether the affected component can be safely accessed and modified.
In this case, Completely Hydraulic removed the affected adaptor, modified it as required, drilled and tapped a new thread and refitted the assembly with a blank.
The repaired components were then refitted to the machine and tested before the job was completed.
Need a fast hydraulic repair quote?
Tell us what’s failed — we’ll get back to you quickly.
Get a Fast Quote →The Engineering Challenge
The issue concerned the thread closure associated with the hydraulic cylinder installation.
Rather than treating the job as a straightforward component replacement, the existing adaptor had to be removed and physically modified so that the connection could be repaired.
The required work involved:
- Accessing the affected cylinder connection
- Removing the existing adaptor
- Modifying the adaptor as required
- Drilling for a replacement thread
- Tapping the new thread
- Refitting with a blank
- Reinstalling the repaired components on the machine
- Testing the completed repair
Engineering Point
Not every hydraulic repair can be resolved by replacing a standard component. Where an existing connection or adaptor requires modification, the engineer must consider the physical condition of the component, the available material and the requirements of the repaired connection before deciding how the work should proceed.
A Time-Critical Hydraulic Repair
This repair also had an operational deadline.
The machine was required to go down track for a shift, which meant the repair needed to be completed within the customer’s required timeframe.
It was agreed that two engineers would attend the site to help complete the work within that window.
Before travelling to site, one engineer attended Completely Hydraulic’s Harlow depot to collect the materials required for the modification. Both engineers then travelled to the machine to carry out the repair.
Why Preparation Matters
For time-sensitive hydraulic repairs, the engineering work starts before the machine is touched. Identifying what is required and arriving with the appropriate materials can help reduce unnecessary delays once engineers reach the equipment.
The Hydraulic Repair Process
01 — PREPARE
Required materials collected from the Harlow depot before attending the machine.
02 — REMOVE
The affected adaptor was removed from the cylinder connection.
03 — MODIFY
The adaptor was cut down as required for the repair.
04 — DRILL & TAP
A new thread was drilled and tapped for the repaired connection.
05 — REFIT & TEST
The adaptor was refitted with a blank, returned to the machine and the completed repair tested.
Stage 1: Accessing the Cylinder Connection
The first stage was to access the affected area of the hydraulic cylinder installation and remove the adaptor requiring modification.

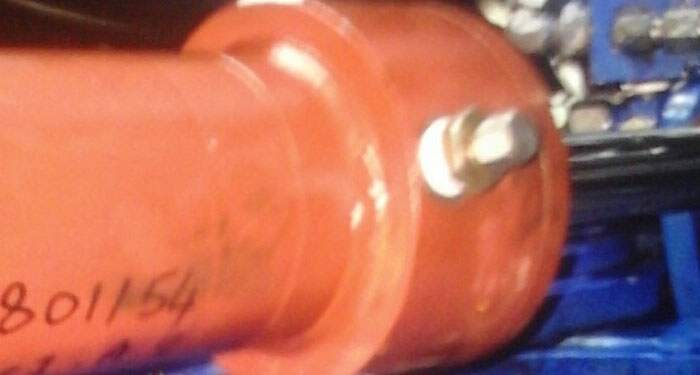

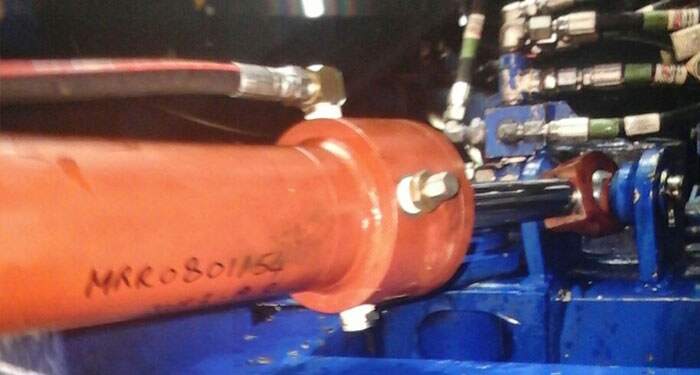

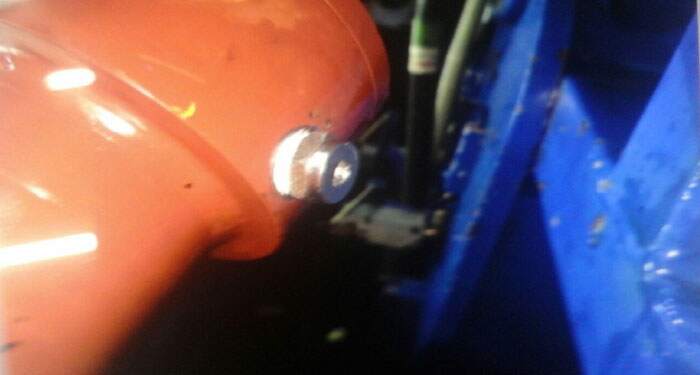

The close-up photographs provide a useful view of the connection area and its position relative to the cylinder and surrounding machine structure.
Once removed, the adaptor could be worked on separately rather than attempting the modification while it remained installed on the machine.
Stage 2: Adaptor Modification
The removed adaptor was cut down as required for the repair.
This modification prepared the component for the next stage: producing the new threaded connection.
Repair Rather Than Simply Replace
This job demonstrates the wider engineering capability sometimes required during hydraulic repairs. The solution involved modifying the existing arrangement rather than simply removing one standard component and installing another.
Stage 3: Drilling & Tapping the New Thread
Following modification of the adaptor, the next stage was to drill and tap a new thread.
Drilling creates the correctly prepared hole for the required threaded connection. Tapping then forms the internal thread into which the corresponding threaded component can be installed.
For this repair, the process allowed the modified adaptor to accept the required blank before the assembly was returned to the machine.
What Does “Drill and Tap” Mean?
Drilling and tapping is a machining process used to create an internally threaded hole. The hole is first drilled to the appropriate size and a tap is then used to cut the required internal thread. In hydraulic engineering, this type of work may form part of a component repair or modification where the existing arrangement allows it.
Stage 4: Reassembly & Refitting
Once the modification and new thread had been completed, the adaptor was refitted with the required blank.
The assembly was then refitted to the machine.
Reassembly is an important stage of any hydraulic modification because the repaired connection must integrate correctly with the existing cylinder installation and surrounding components.
Stage 5: Testing the Completed Repair
After the components had been refitted, the machine was tested.
Testing allowed the engineers to check the completed work following the thread repair, adaptor modification and reassembly.
Only after the repair had been refitted and tested was the engineering work considered complete.
Final Outcome
The cylinder connection issue was repaired through a combination of component removal, adaptor modification and on-site engineering work.
The completed job included:
- Affected adaptor removed
- Adaptor cut down as required
- New thread drilled and tapped
- Blank fitted
- Components refitted to the machine
- Completed repair tested
With two engineers attending, the work was completed within the required timeframe so the machine could meet its planned operational requirement.
Why Hydraulic Threads & Connections Matter
Threaded connections are used throughout hydraulic machinery to secure fittings, adaptors, plugs and other components.
When a threaded connection can no longer perform its intended function, the correct response depends on the individual component and the condition of the surrounding material.
Depending on the circumstances, an engineer may need to consider:
- The condition of the existing thread
- The component material
- The type of hydraulic connection
- Whether sufficient material remains for modification
- Accessibility of the affected component
- Whether repair or replacement is the appropriate engineering solution
Can Every Damaged Hydraulic Thread Be Repaired?
No. Whether a threaded hydraulic component can be repaired depends on the component, material, damage and application. The affected area should be assessed before deciding whether machining, component modification or replacement is appropriate.
Quick Engineering Summary
Completely Hydraulic attended a time-critical hydraulic repair involving a cylinder thread closure issue on machinery required for an upcoming shift.
The affected adaptor was removed, cut down as required and modified by drilling and tapping a new thread. It was then refitted with a blank, returned to the machine and tested.
Service: Hydraulic cylinder connection repair
Work: Adaptor modification, drilling and tapping
Repair Type: On-site hydraulic engineering
Engineers: Two engineers
Preparation: Materials collected from Harlow depot
Outcome: Repair completed and machine tested within the required timeframe
More Than Hydraulic Component Replacement
Hydraulic engineering frequently requires more than changing hoses or replacing individual components.
Existing machinery can present connection problems, restricted access and non-standard repair requirements that need practical engineering judgement.
Depending on the application, Completely Hydraulic’s engineering work can include:
- Hydraulic cylinder and ram repair
- Hydraulic hose replacement
- Hydraulic fitting and adaptor work
- Component modification
- Hydraulic valve replacement
- On-site fault diagnosis
- Hydraulic system servicing
- Workshop engineering support
The objective is always the same: identify the engineering problem, determine an appropriate repair and return the equipment to service safely and practically.
